RDAF-KU06 Ku-Band Low-Altitude Surveillance Radar

This radar serves as a low-altitude early warning and reconnaissance device operating in the Ku-band. It utilizes a Linear Frequency Modulation (LFM) pulse system paired with a wide-angle frequency-scanning (freq-scan) waveguide antenna.

The system achieves full airspace coverage by combining frequency scanning in the elevation dimension with mechanical scanning in the azimuth dimension. By replacing expensive phased-array scanning with frequency-scanning technology in the elevation plane, this radar offers an exceptionally high performance-to-cost ratio.

Product Features

High Detection Probability & Low False Alarm Rate: Reliable target acquisition with advanced noise filtering.

Superior Tracking Performance: Consistent locks on targets across wide sectors.

High Detection Precision: Accurate data output for critical situational awareness.

Portable & Easy to Operate: Designed for rapid field deployment and intuitive user interface.

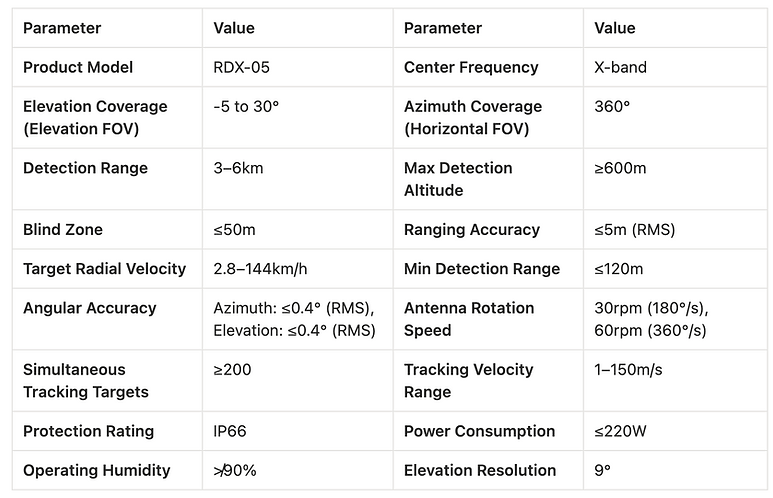

Technical Parameters
Application area
